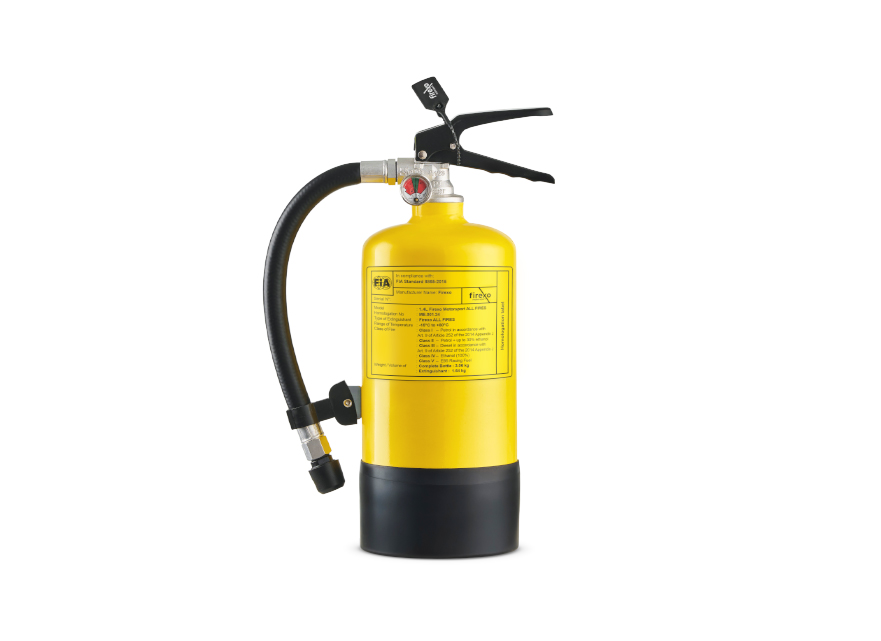

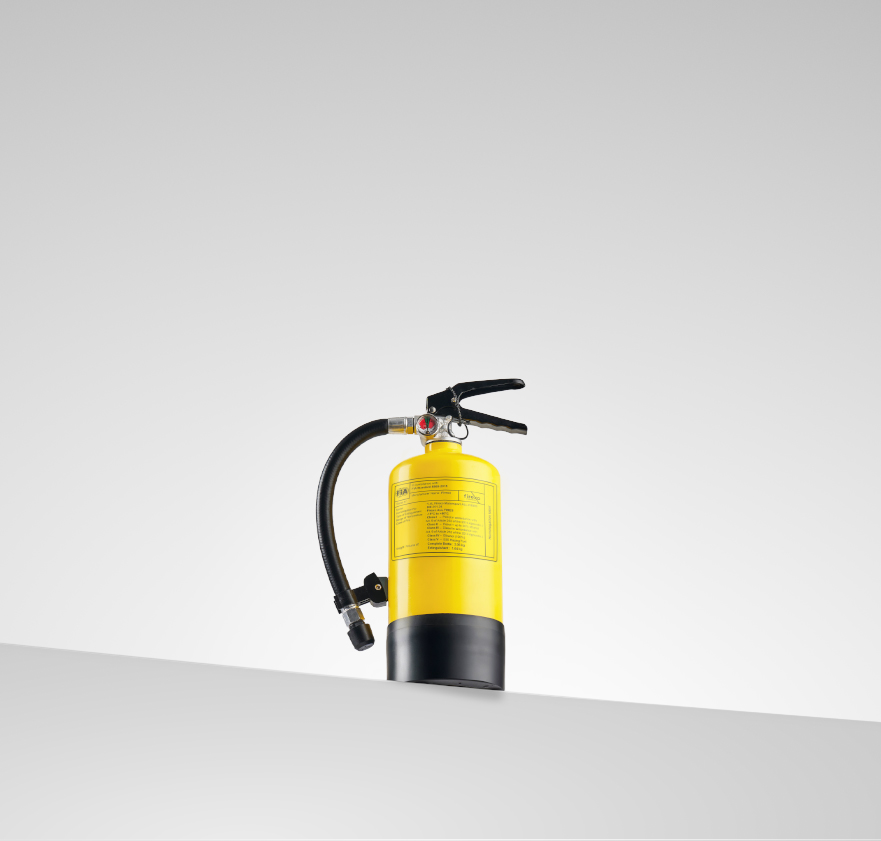

1.4L Motorsport Extinguisher
Firexo 1.4 Litre Motorsport Fire Extinguisher is FIA-approved and purpose-built for competitive racing environments.
The 1.4 Litre extinguisher forms part of the Firexo Motorsport Range – the only comprehensive line of all-fires portable hand-held extinguishers fully approved to Fédération Internationale de l’Automobile (FIA) 8865-2015 standards.

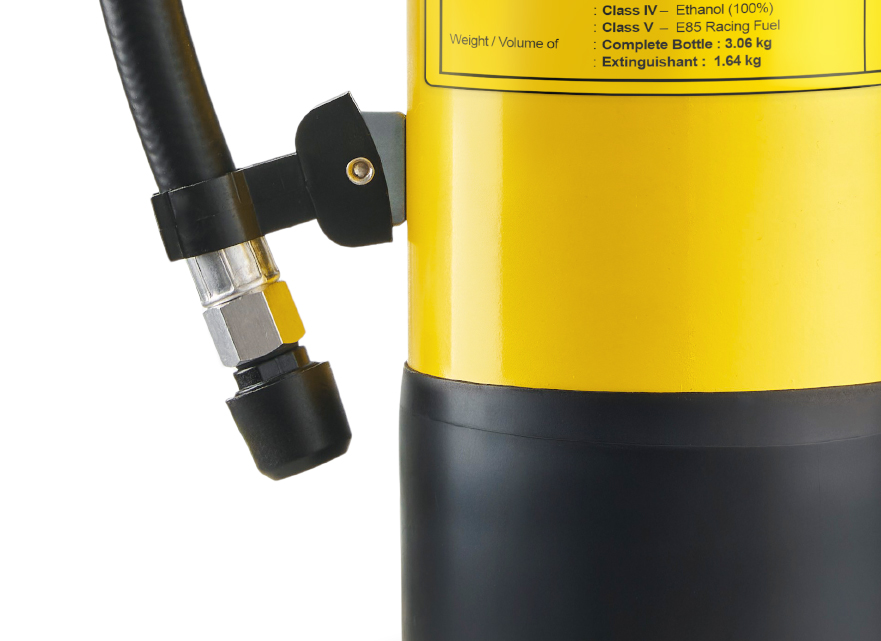

This model is approved across all five FIA fire classes (I–V), providing certified all-in-one protection for motorsport applications. Engineered for high-vibration environments, it features a magnetic hose retainer to ensure secure positioning with instant deployment.
Certifications & Approvals
Highlights
FIA Homologation Number:
ME.001.24
Model/Product Number:
1.4L Firexo Motorsport ALL FIRES
Capacity:
1.4L
Overall Product Height:
325 ± 5 mm
Cylinder Height:
245 ± 2 mm
Cylinder Diameter:
110 ± 1 mm
Cylinder Material:
Steel
Pressurising Gas:
Nitrogen
Extinguishing Agent:
fx51 Firexo ALL FIRES Extinguishing Agent
Test Pressure:
36 bar
Working Pressure:
12 bar
Weight (Full):
3.06 kg
Weight (Empty):
1.42 kg
Spray Range:
2-3 m
Discharge Time:
15-20 s
Temperature Range:
-15°C/+80°C
Warranty:
6 years – refilled every 2 years
Fire Ratings FIA:
Class I – Petrol in accordance with Art. 9 of Article 252 of the 2014 Appendix J
Class II – Petrol + up to 30% ethanol
Class III – Art. 9 of Article 252 of the 2014 Appendix J
Class IV – Ethanol (100%)
Class V – E85 Racing Fuel
Class II – Petrol + up to 30% ethanol
Class III – Art. 9 of Article 252 of the 2014 Appendix J
Class IV – Ethanol (100%)
Class V – E85 Racing Fuel
Standard Fire Classes:
A/B/C/D/Electrical/F/Lithium-Ion
Testing Standard:
FIA Standard 8865-2015
CE Approval:
CE 0036
Instructions of use
Hold upright and pull out safety pin.
Free hose and aim at base of fire.
Squeeze handle and sweep side to side.
QuickStart Product Setup
- The 1.4L Motorsport product requires the hose attachment to be fitted. Simply screw into the valve fitting at the top of the extinguisher by hand. Do not overtighten.
- The extinguisher support bracket is available from the range of Firexo specialist accessories.
- Firexo liquid is a revolutionary aqueous based extinguishing solution that is globally patented and protected.
- Do not remove any components or safety tags from the extinguisher before using it in case of emergency.
- Visually inspect the extinguisher for signs of damage or other issue that may compromise performance. The pressure gauge should show the needle in the green section.
- Take time to familiarize yourself with the directions, storage and maintenance information printed on the extinguisher. Failure to do so may compromise the product and/or invalidate the warranty.
Information
- Firexo 1.4L Motorsport Extinguisher has a 6yr manufacturer’s warranty – refilled every 2 years. The date of purchase would be the commencement date for the warranty period.
- We recommend that you regularly check your extinguisher for signs of wear and tear, tampering or defect etc. and replace when necessary.
- Store extinguisher upright. Do not remove base.
- Firexo can help you to find a Service Maintenance Engineer in your area. Please contact us using the Contact Form, our team will be happy to assist you.
- The nature of the pressurised vessel requires sensible and standard safety, servicing and maintenance protocol to be followed.
- Please be assured, while strong enough to maintain the integrity of the vessel in transit and in-situ etc. it will break under moderate force when required.
- It is normal for the pressure to fluctuate slightly during transit etc. but should always return to the green zone when the unit is returned to stable, ambient conditions.
Important Notice
- Your Firexo Extinguisher is suitable for ALL FIRES, indoors and outdoors. However, in the event of a fire, please do not take unnecessary risks. Evacuate and call the fire service immediately.
- It is recommended that you have adequate fire protection cover for the level of fire risk applicable to your situation.
